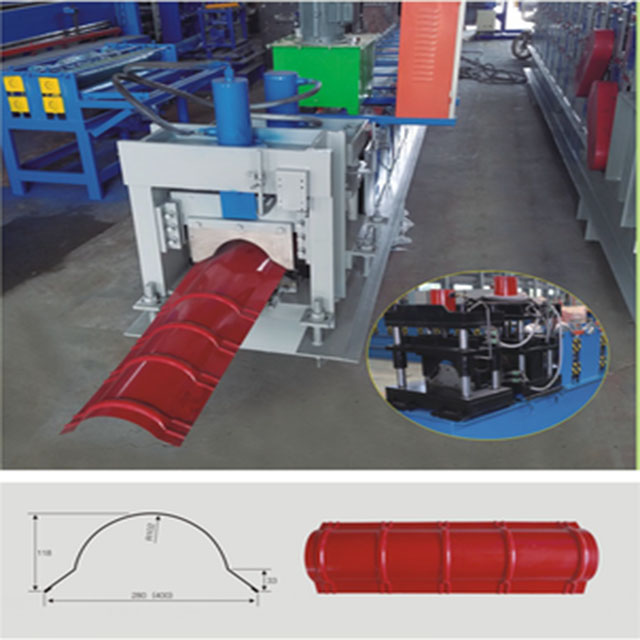

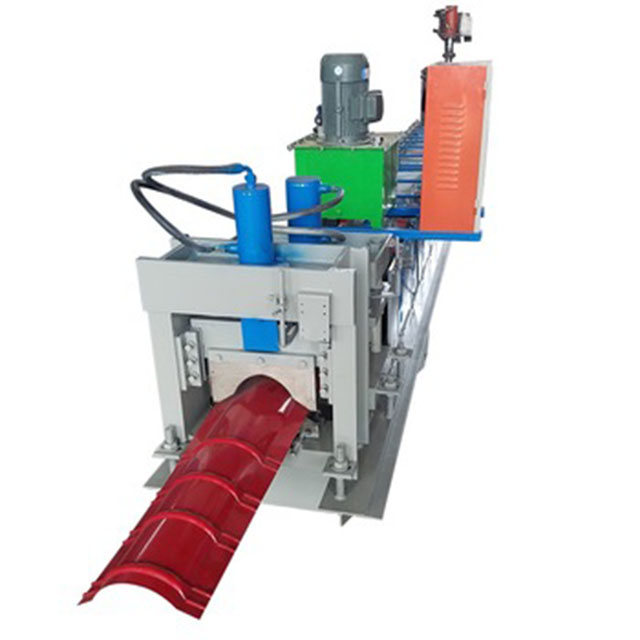

Metal Roof Ridge Cap Roll Forming Machine
Metal Roof Ridge Cap Roll Forming Machine
Metal Roof Ridge Cap Roll Forming Machine
Metal Roof Ridge Cap Roll Forming Machine
Metal Roof Ridge Cap Roll Forming Machine

Metal Roof Ridge Cap Roll Forming Machine

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now Add to Basket

  • Basic Info
  • Product Description
  • Email
Basic Info

Tile Type: Colored Steel

Certification: CE, ISO

Condition: New

Customized: Customized

Usage: Roof, Wall

Transmission Method: Machinery

Product Name:: Metal Roof Ridge Cap Roll Forming Machine

Productivity: 8-12m/min

Place Of Origin: China(Mainland)

Privince: Hebei

Brand: Hongyuan

Voltage: 380V 50Hz 3phases Or As Customers' Need

Size (length × Width × Height):: 6500*1200*1100 (depend On Final Design)

Weight: Around 3.0 Tons (depend On Final Design)

Warrenty: 1 Year

Additional Info

Packaging: Naked

Transportation: Ocean

Port: Tianjin Sea Port

Product Description

Product Description

Specifications for Iron and Steel Profile Metal Forming Machine Roof Ridge Equipments
coil material
Colored Steel Plate, Galvanized Board, Aluminum Plate
350--500mm (according to customer requirements and profile drawing)
manual decoiler
inside diameter
coil width
coil load
forming device
shaft material
45#steel-high quality steel, diameter 70 mm
roller material
45# steel with chrome coating
roller station
depends on final design
Main frame
300 H steel
chain transport
board thickness
around 3.0T(depends on final design)
6500mm*1200mm*1100mm(depends on final design)
control system
PLC control system
total power
4+4kw (depends on final design)
380V,50HZ,3 phascs or as your need
8-12m/min(depends on final design)

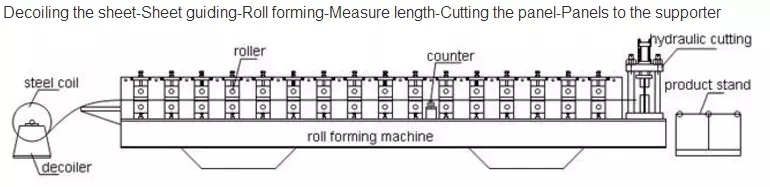

Main components

Name QTY
1 Manual Uncoiler 1 set
2 Feeding and Leveling Device 1 set
3 Roll Forming System 1 set
4 Hydraulic Punching and Cutting 1 set
5 Product Support Frame 1 set
6 PLC Control System 1 set

Detailed Images

1.Cutting Device
a. Cutting press is 20 tons
b. Blade and mold material:GCR12steel with quenched treated 60-62℃
It can decide cut panel dimension according to the hydraulic drive and PLC computer control system

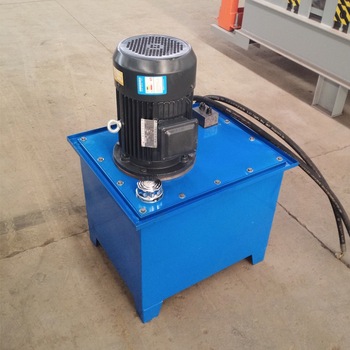

2.Hydraulic Station

a. Power: 4kw (depends on final design)
b. Hydraulic oil: 46# hydraulic oil
c. Working pressure: 12-16Mpa adjustable
d. Solenoid valve: 1groups

e. Color: as customer's request

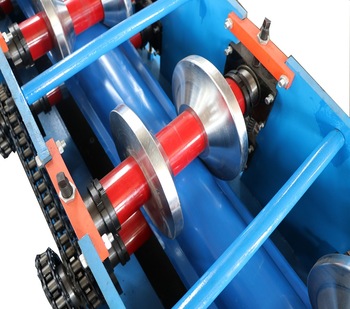

3.Roller System
a. Material: high grade NO.45 forged steel.
b. Roller station: 11-16(depends on final design)
c. Thickness of feeding material:0.3-0.8mm

4.Automatic Control System

a. Screen: touch screen or text screen
b. Automatic length measurement
c. Automatic quantity measurement
d. Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved.
e. Length inaccuracy can be amended easily.

5.Manual Uncoiler

a. Inner diameter: 500-508mm
b. Steel coil width: 350-500mm
c.Coil placement in the coil holder: hydraulic hoist
d. Working speed: 0-15m/min adjustable

6.Receiving Table

It is used for transmitting and collecting the finished products

Pre-sales Service

* Inquiry and consulting support.

* Help clients design profile or optimize base on our engineer suggestion
* View our Factory.

After-sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging Details:

a. One 20 or 40ft container for loading one set machine with manual decoiler;
b. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
c. Spare parts and some small parts packed in plastic tooling box;
d. All Components Fixed by steel wire with Container.
Delivery Time:
within 25 days after receipt of buyer's deposit

Our company

a. Two decades professional cold steel forming equipments manufacturer
Main products: Glazed Tile Roll Forming Machine, Ridge Cap Roll Forming Machine, corrugated roll forming machine, most popular color steel Roll Forming Machine, double deck color steel roll forming machine, Keel Roll Forming Machine, C/Z purlin forming machine, Austalia style roller shutter door forming machine and etc.

b. National GB/T, CE and ISO9001:2008 standard

c. Business relationship with customers from more than 30 countries and areas

Looking for ideal Metal Roof Ridge Cap Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roof Making Machine are quality guaranteed. We are China Origin Factory of Roof Tile Making. If you have any question, please feel free to contact us.
