C&Z Purlin Forming Machine

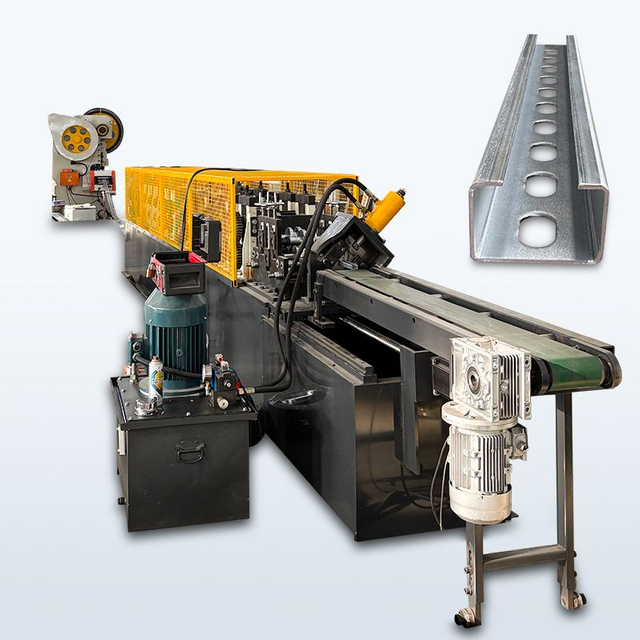

Steelmama Purlin Roll Former

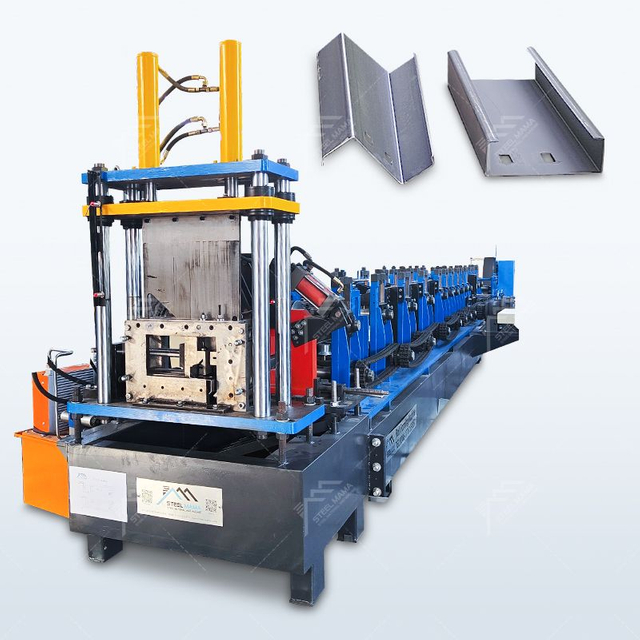

The C&Z purlin forming machines are specifically used to manufacture multi-size C and Z purlin channels. Steelmama manufacture Automatic and Semiautomatic type purlin roll forming machines.
The Roll tools are carved in highly precise CNC machines which gives it better quality and longer service life as we say “Quality & Service are the main ingredients of our Machines”
The Machine’s parts are all made with precision and experienced personals, with optimum quality roll tools so you never have to worry about the machine quality.


Purlin Forming Machine for Different Requirements

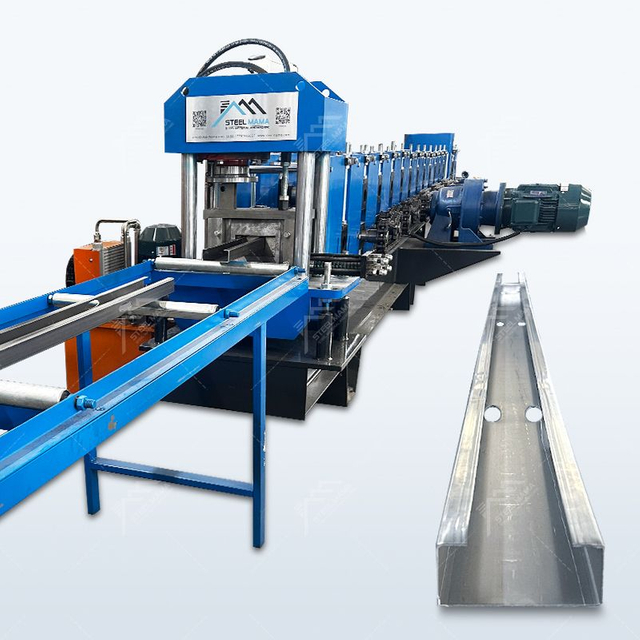

Manual adjust roll forming machine for C or Z purlin, manually adjust the spacer, change the cutting blade, to change the sizes of purlins.

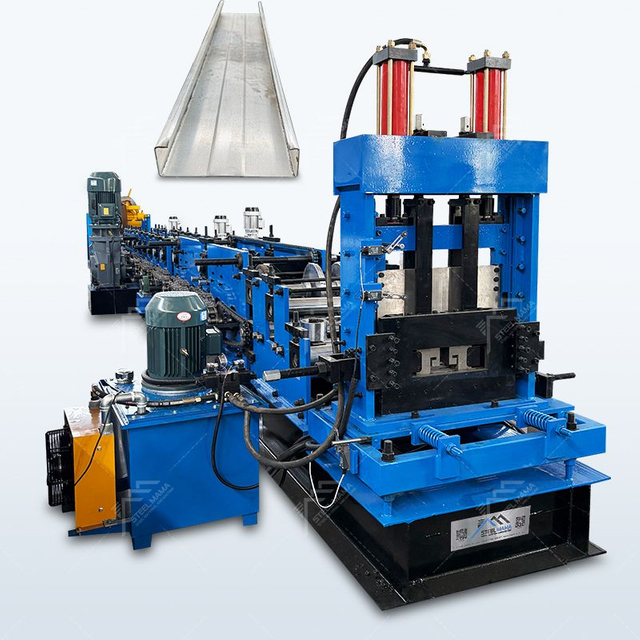

Pre-Cutting C Purlin Roll Forming Machine with manual adjust spacers. Only need to adjust the spacers, but the ends of C purlin will be a bit deformed.
Multifunctional Cutting C Purlins Roll Forming Machine with manual adjust spacer design, same as the second design, and cutting ends will be good.

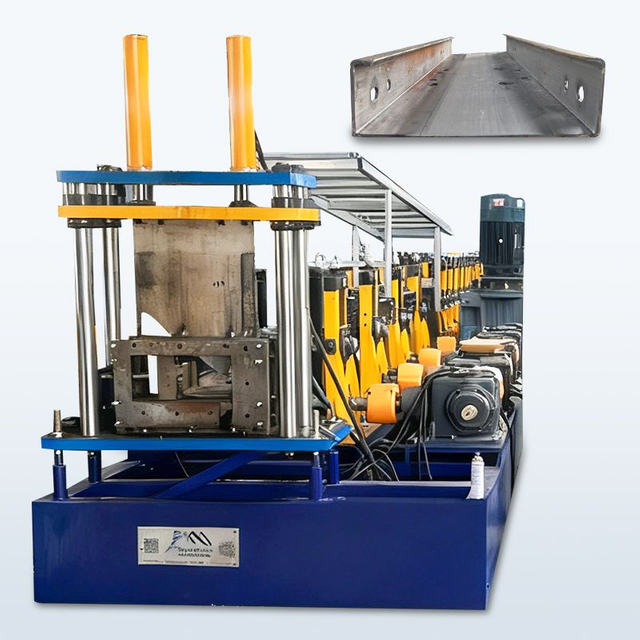

Quick interchange C Purlin Roll Forming Machine with multifunctional cutting. Automatically adjust the sizes of C purlin, and easy to adjust the cutting blade. 2 minuter changeover time.

CZ Changeable Purlin Roll Forming Machine's Advantages

【Machine Long Lifer】Rollers are made from Cr12 mould steel being quenched treatment, HRC58-60, CNC machine tooled to increase rollers precision.
【High Efficiency】15-18m per minute. Produce 7000m per shift for 8 hours one day.
【High Preision】Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
【Automatic & Easy Operate】Safe and easy to operate with Mitsubishi PLC touch screen operating system. Friendly man-machine interaction.
【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.

Purlin Machine Workflow

steelmama czu machine

Purlin Machine Components

The main structures of the purlin roll machine work in a non-stop sequence. When the material is inserted into the machine, the machine continuously finds its way via all the stages of the operation. The end of the process produces a final and complete product. The purlin roll machine is designed with uncoiler, forming line,cut-off and punching device, PLC control part and hydraulic pump station.

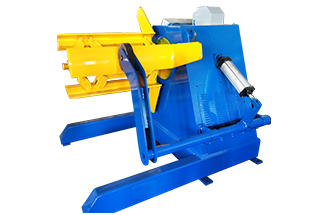

Decoiler

Decoiler

Uncoiler is a unique tool used to level line steel plates. It can perform shearing production, levelling, and uncoiling and can also be configured to perform other sheet product production lines.The uncoiler part of the purlin forming machine is the gadget responsible for providing sheet materials and storing unwinding materials. It also firmly delivers the steel coils to the forming production line chamber.
Max. Width ：600mm
Inner Diameter ：Φ450 – Φ550 mm
Out Diameter：1500 mm
Max. Loading ：Capacity: 3000 kgs
Working Way：Passive or hydraulic
CZ-purlin-machine

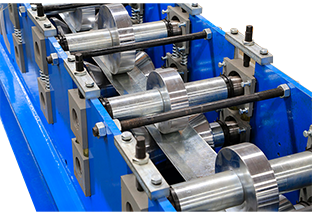

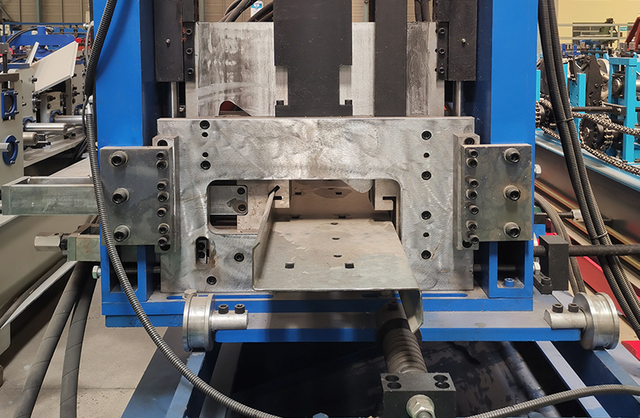

Roll Forming Machine

Material Thickness：1.5-3 mm PPGI and GI
NO. of Roller Stations ：11-15 stations
Material for Rollers：GCR15 # steel polished and coated with chrome HRC58-62°
Material for Shaft：High grade 45# steel polished(CNC lathe)
Diameter of Shaft：80mm（Solid shaft）
Frame Panel ：16*290*580mm
Bottom Frame ：400x8mm H steel
Motor Power ：18.5（shanghai motor）
Driven Type：Wall Plate Chain Drive
Chain and Gear ：double row double sides 1" inch
Speed：About 15m/min
cz purlin machine

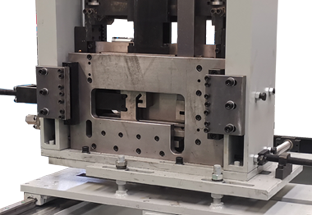

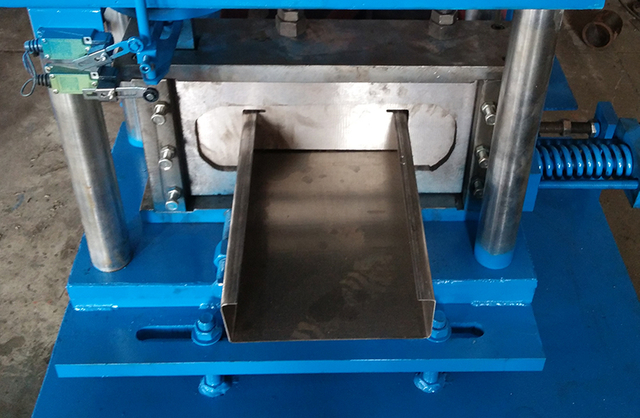

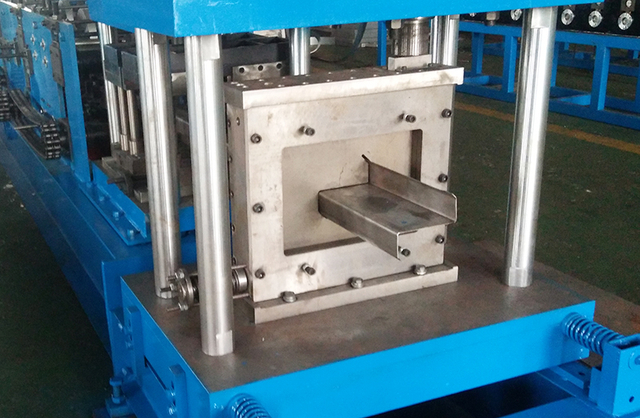

cut-off and Punching Device

The cutting part comprises a shearing machine and a fixed-length tool. The fixed-length device controls the length via encoding. The produced C or Z purlin is cut, and the stamping is completed when the purlin reaches a specific length.
Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment :HRC58 – 62°
Cut-Off Type ：Qualified pillar cutting
Motor for Hydraulic Stand :5.5KW
Punching Die Material:Cr12 steel after treatment
Contrl-box

PLC Control Box

The purlin production line entirely has a top-notch electronic control system. The electrical control components of the purlin roll machine meet international specifications, and you can also specify your desired parts. The component
requirements include a transparent line number, clear markings, and reasonable parts.
Type ：PLC Frequency Control System with touch screen
PLC Brand：Delta Encoder Brand: Omron
Length Error ：±2mm
Language ：English and Chinese
Voltage：380v/50HZ, 3Phase (It depends on customer requirement)
Hydraulic-Pump-Station

Hydraulic Pump Station

Oil type：46# hydraulic oil
Pump brand ：China brand
Motor power ：5.5kw
Solenoid valves ：Huade brand
Solid valve ：Three
Cooling way：Fan

Purlin classifications

Purlins can be classified into different types based on the shapes: Channel sections, with or without flange stiffeners, we named C Purlin. C purlin without lips, we named U Purlin. And point symmetric sections that are shaped similar to the letter Z are referenced as Z shapes, we named Z Purlin.

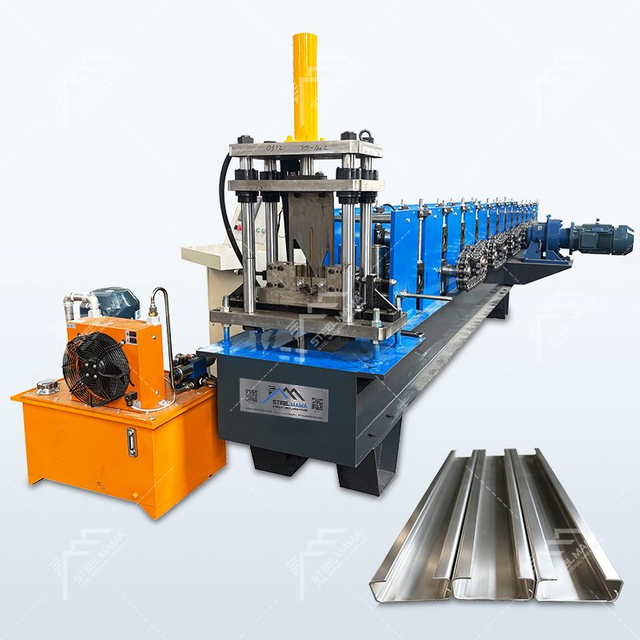

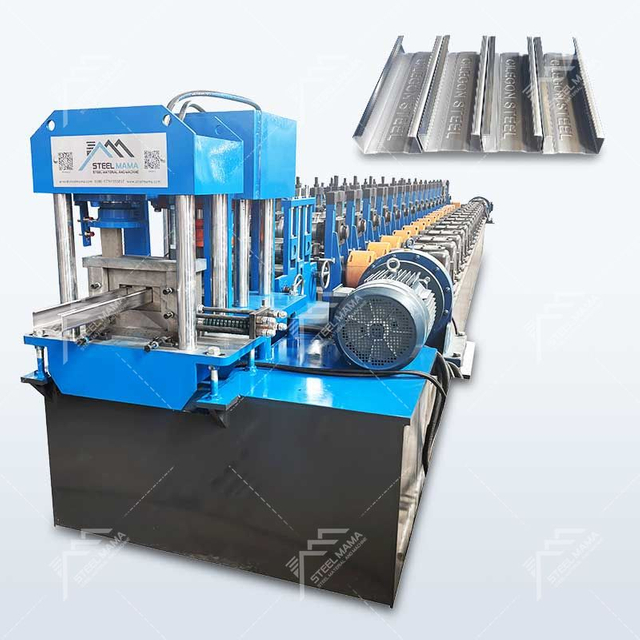

Steelmama has manufactured C Purlin Roll Forming Machine, Z Purlin Roll Forming Machine, C&Z Purlin Roll Forming Machine. We also accept customized purlin profiles to design and manufacture the machines.

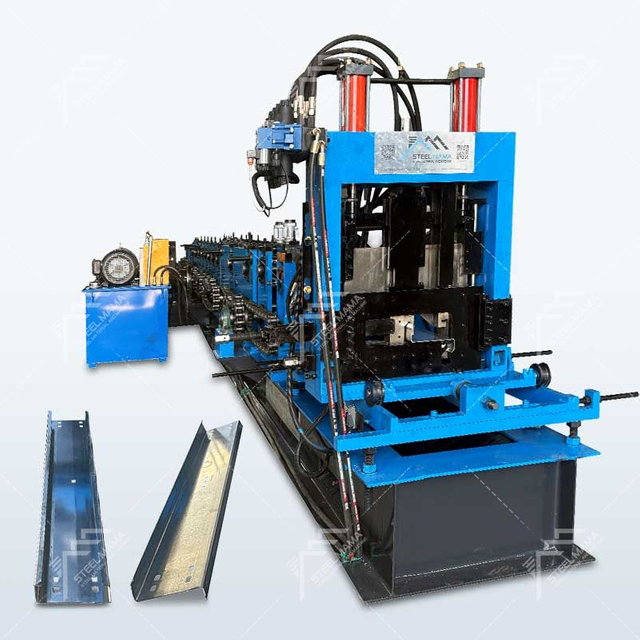

CZ Purlin Machine Product

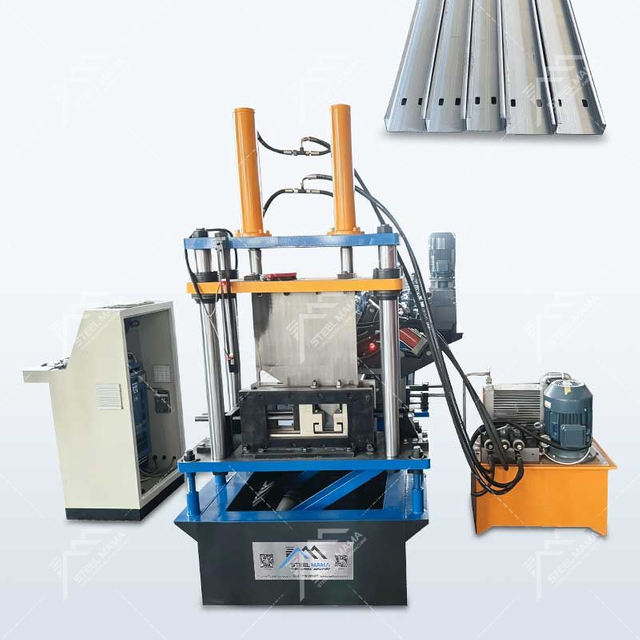

Our purlin machine is made to produce different shapes purlin in pre-painted, galvanized, and also hot rolled “black” steel, all our purlins are 55 KSI minimum yield strength quality.Each line can be loaded with coil entry equipment, including uncoilers, as well as a wide range of hole punching systems for inline web and flange hole placement with high accuracy.Purlin rollformers cover the range of material types, as well as thicknesses for any market. Even the automation of gapping the roll tooling for different thicknesses can be added so that your operator does not have to adjust the top shaft for material thickness changes.

CZ purlin machine
