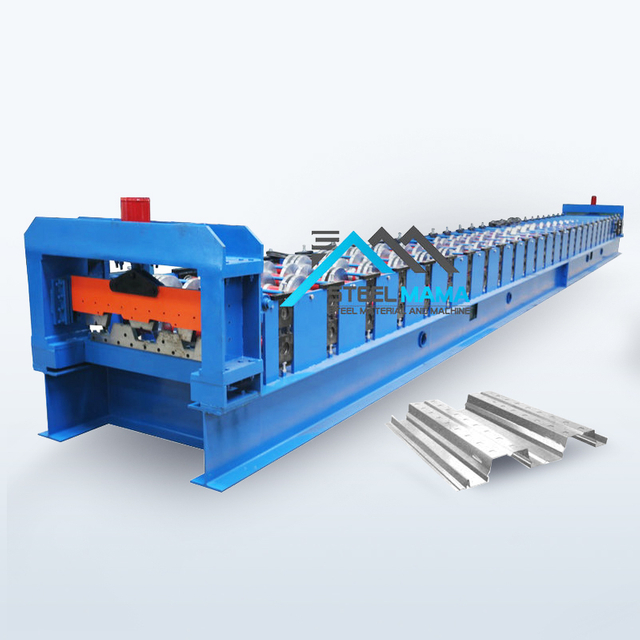

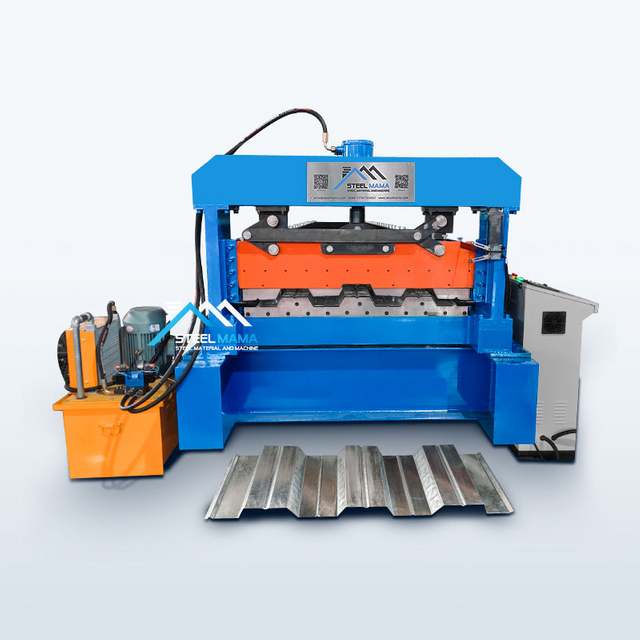

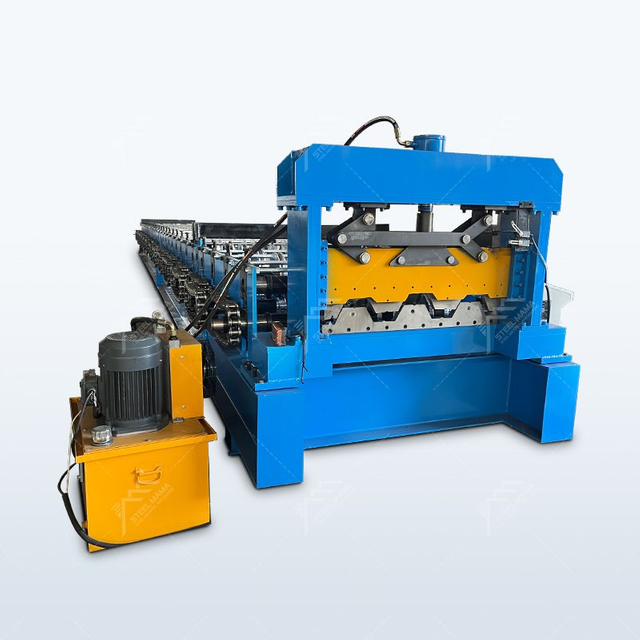

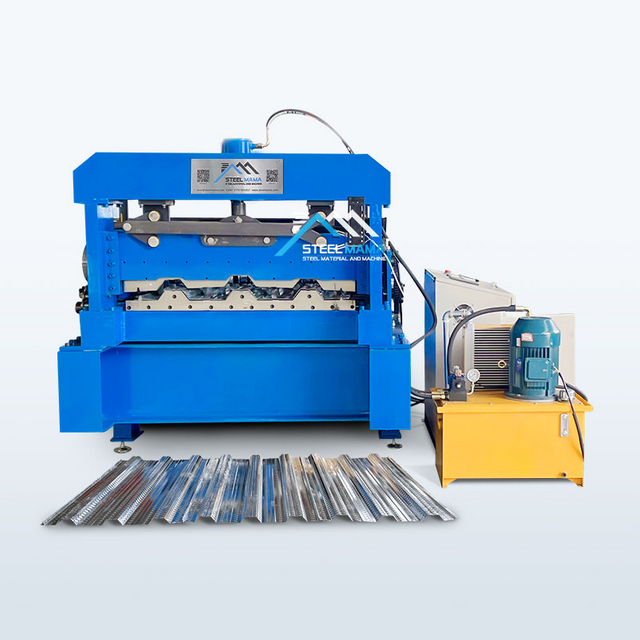

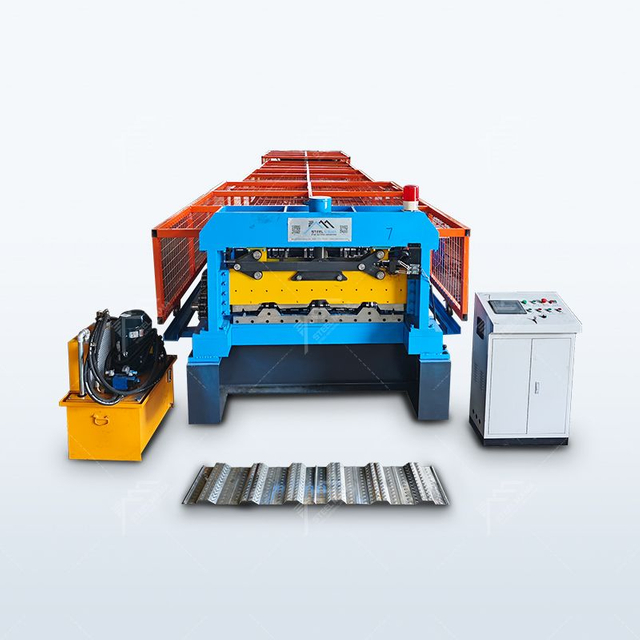

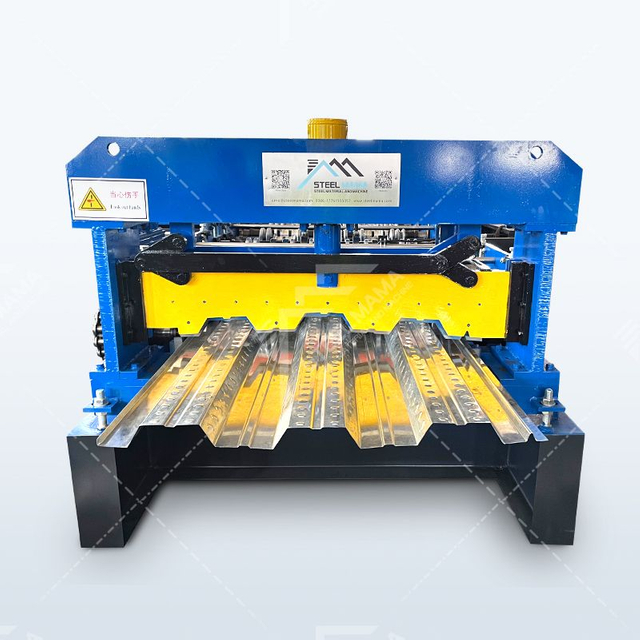

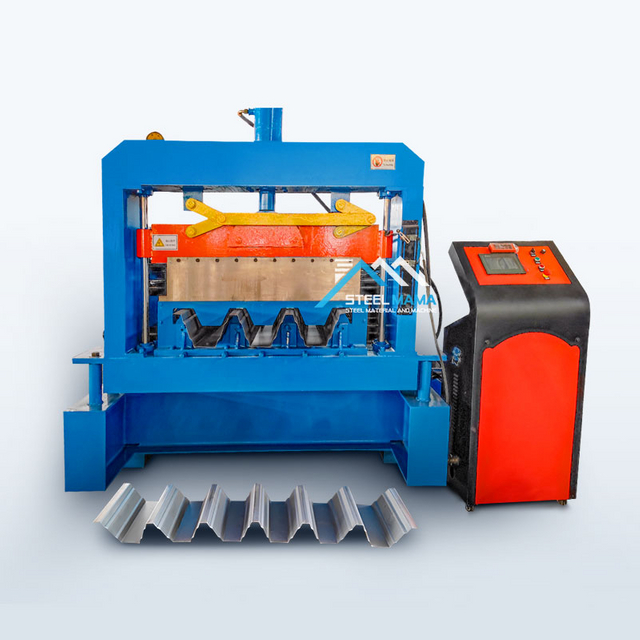

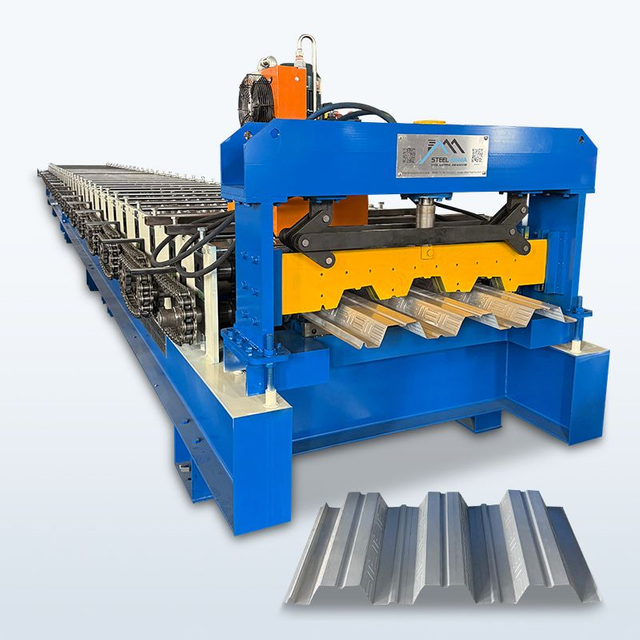

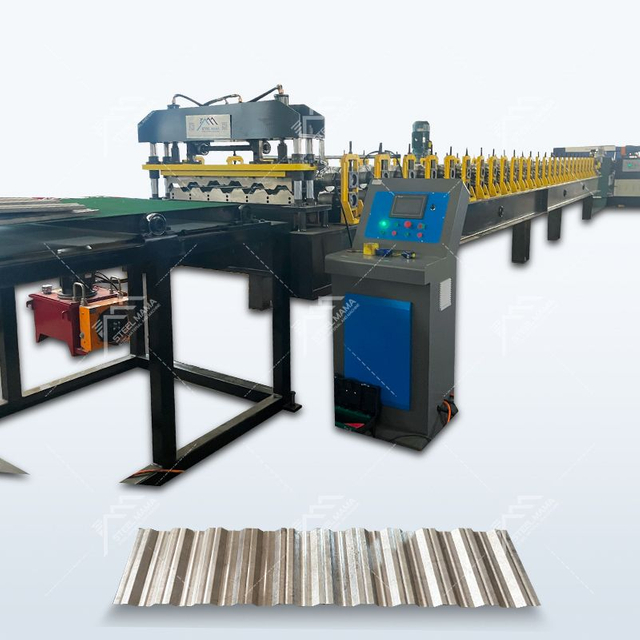

Decking floor machine

Decking Floor Machine →

High Efficiency → 20-25m per minute .Produce 9600m per shift for 8 hours one day.
Long Life Machine → Rollers of machine are CNC machine tooled, plated with 0.05mm hard chrome on surface.Heat treatment for cutting frame to remove the steel stress, to avoid deformation. Cutting material is Cr12 mould steel with quenched treatment, all these processing steps ensure machine long life time.
High Precision → Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
Automatic & Easy Operate → Safe and easy to operate with Mitsubishi PLC touch screen operating system.Friendly man-machine interaction.
Excellent Services → Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.

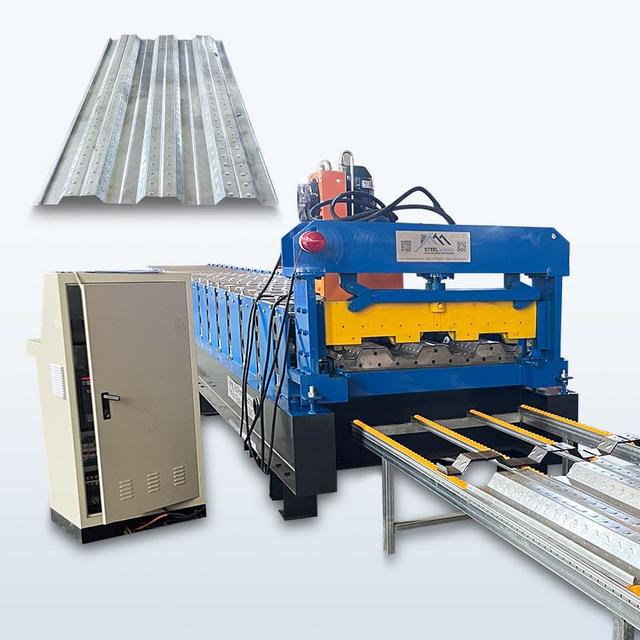

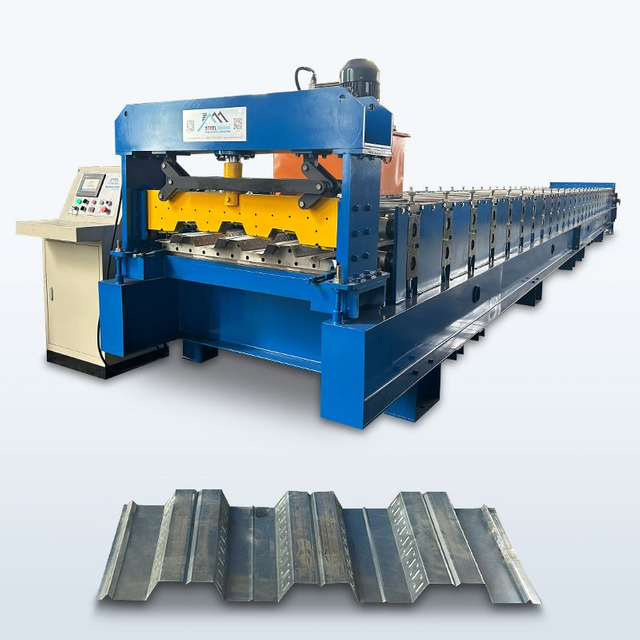

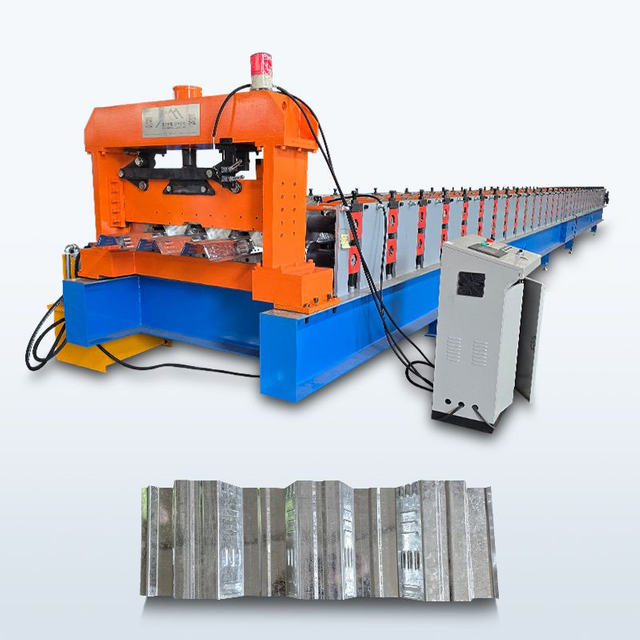

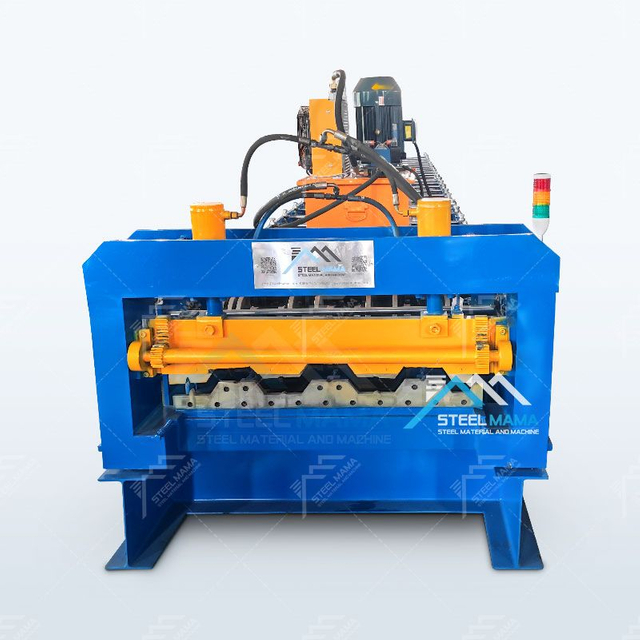

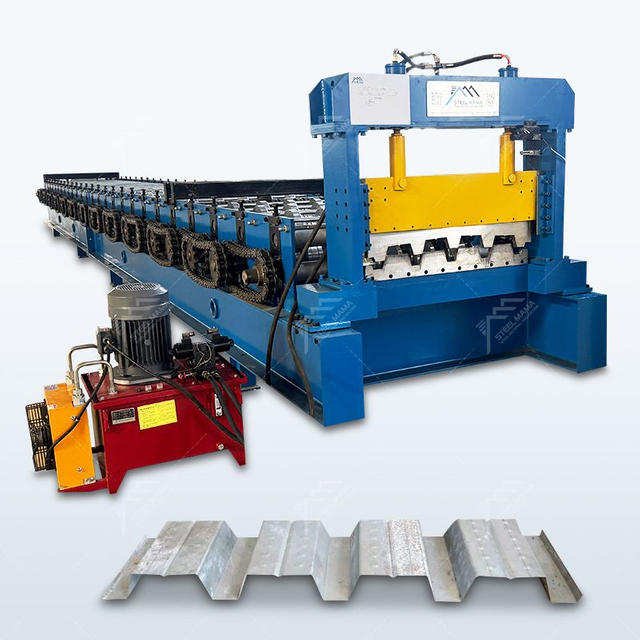

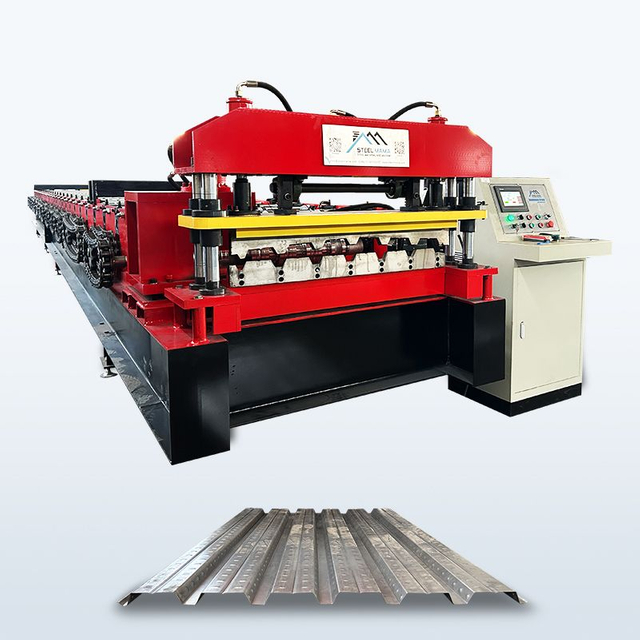

Decking Floor Machine Products

960
1020
Deck-floor-Sheet 960
Deck-floor-Sheet 1020
Decking-drawing 688

Decking Floor Machine Workflow

roofing sheet Machine Flow Chart

Decking Floor Machine Components

Decoiler

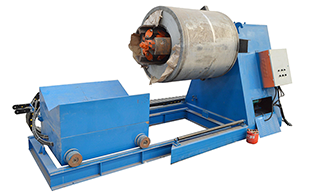

Decoiler

Uncoiler is a unique tool used to level line steel plates. It can perform shearing production, levelling, and uncoiling and can also be configured to perform other sheet product production lines.
Max. Width：1000-1250mm
Inner Diameter：Φ450 – Φ550 mm
Max. Loading:Capacity： 5000 kgs
Out Diameter：1500 mm
Working Way：Passive or hydraulic
Roll-Forming-Machine

Roll Forming Machine

Material Thickness：0.7-1.2mm PPGI and GI
NO. of Roller Stations：26-32 stations
Material for Rollers：GCR15 # steel polished and coated with chrome HRC58-62°
Material for Shaft：High grade 45# steel polished(CNC lathe)
Diameter of Shaft：90mm（Solid shaft）
Frame Panel：16*290*580mm
Bottom Frame：350x6mm H steel
Motor Power：11KW x 2（shanghai motor）
Driven Type：Wall Plate Chain Drive
Chain and Gear：2", chain
Speed：About 15m/min

Cut-off Device

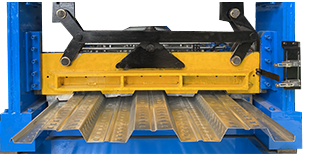

Cut-off Device

The cutting part comprises a shearing machine and a fixed-length tool. The fixed-length device controls the length via encoding. The produced sheet is cut, and the stamping is completed when the sheet reaches a specific length.
Material for Cut-Off Modular :Cr12 steel after treatment
Hardness for Heat Treatment :HRC58 – 62°
Cut-Off Type :Qualified pillar cutting
Motor for Hydraulic Stand :4KW
Punching Die Material:Cr12 steel after treatment
Contrl-box

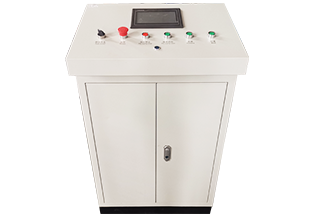

PLC Control Box

The production line entirely has a top-notch electronic control system. The electrical control components of the purlin roll machine meet international specifications, and you can also specify your desired parts. The componentrequirements include a transparent line number, clear markings, and reasonable parts.
Type ：PLC Frequency Control System with touch screen
PLC Brand：Delta Encoder Brand: Omron
 Length Error ：±2mm
Language ：English and Chinese
Voltage：380v/50HZ, 3Phase (It depends on customer requirement)
Hydraulic Pump Station

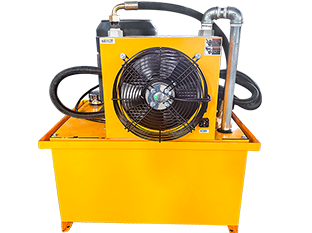

Hydraulic Pump Station

Oil type：46# hydraulic oil
Pump brand ：China brand
Motor power ：4kw
Solenoid valves ：Huade brand
Solid valve ：Single
Cooling way：Fan

Decking Floor Machine

Cooperative Partner
MORE
PACK UP
Contact Us
Shipment
Production Capacity and Efficiency of Metal Roof Ridge Cap Tile Forming Machines.jpg
14 / 03 / 2025

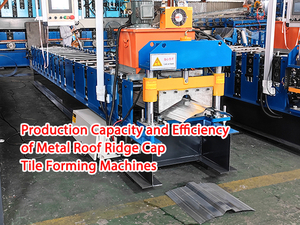

Production Capacity And Efficiency of Metal Roof Ridge Cap Tile Forming Machines

Production Capacity and Efficiency of Metal Roof Ridge Cap Tile Forming MachinesThe production capacity and efficiency of a metal roof ridge tile forming machine are critical factors that determine its suitability for various manufacturing needs. Here’s an overview of what to expect:1. P

Read More
Why Choose Our Trapezoidal Roll Forming Machine.png
13 / 03 / 2025

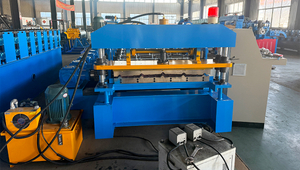

Why Choose Our Trapezoidal Roll Forming Machine?

Trapezoidal Roll Forming Machine: Precision and Efficiency in Roofing and Cladding ProductionThe Trapezoidal Roof Sheet Machine is a state-of-the-art solution designed for the efficient production of trapezoidal profile sheets, widely used in roofing, wall cladding, and structural applications.

Read More
Standing Seam Machine.jpg
10 / 01 / 2025
Standing Seam Machine Functions And Applications

IntroductionA Standing Seam Machine is a specialized piece of equipment used to produce standing seam metal roofing panels. These roofs are known for their durability, water resistance, and sleek appearance, making them a popular choice for commercial, industrial, and residential buildings.

Read More
Main features and components of the L Angle Machine.jpg
25 / 11 / 2024
Main Features And Components of The L Angle Machine

An L Angle Machine is specialized equipment designed to produce L-shaped steel angles, also known as angle iron, which are widely used in construction, infrastructure, and industrial applications. These angles are commonly employed in frameworks, supports, and reinforcements due to their strengt

Read More
24 / 10 / 2024

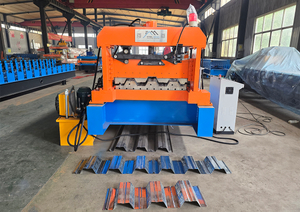

Main Features And Components of The Decking Floor Machine
