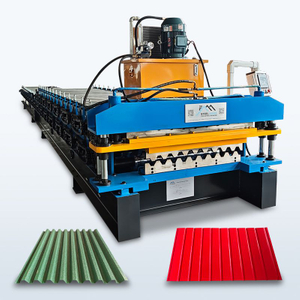

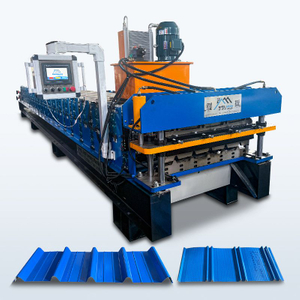

Double Layer TR4 And TR5 / IT4 And IT5 Two In One IBR Trapezoidal Steel Metal Sheet Roof Cold Roll Forming Machine

Double layer roll forming machine has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet.The roofing tiles sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.
  • STEELMAMA

Availability:
Quantity:


Double Layer TR4 And TR5 / IT4 And IT5 Two In One

IBR Trapezoidal Steel Metal Sheet Roof Cold Roll Forming Machine

Double Layer Roll Forming Machine For Sale From China


PRODUCT DISPALY

double layer trapezoidal cold roll forming machine manufacturers

automatic double layer rolling machine with cedouble layers painted metal roof panel roll forming machineibr roll forming machine


Machine Flow Chart


Hydraulic Double Layer Trapezoidal Sheet Profile Roll Forming Machine
Main workflow of Double Layer TR4 And TR5 IBR Trapezoidal Steel Metal Sheet Roof Cold Roll Forming Machine

          Decoiler  →  Molding core  →  Hydraulic System  →   Automatic Control system  →   Step Formed

 Mechanism  →  Automatic Shearing Mechanism  →   Products Receiving Tables

 floor deck and steel roll forming machine 790





Main Technical Parameter

Low price double layers painted metal roof panel roll forming machine

Decoiler

1 set

Feeding Device  With Pre-sliding Cutter

1 set

Forming Machine

1 set

Cutting Device

1 set

PLC Control Box

1 set
  Hydraulic Pump Station 1 set
Production Support Table 1 set

 1  Decoiler

Max. Width 1000-1250mm Roof sheet machine1
Inner Diameter Φ450 – Φ550 mm
Out Diameter 1500 mm
Max. Loading Capacity: 5000 kgs
Working Way Passive or hydraulic

 2  Feeding device with

    Pre-sliding cutter

Roof sheet machine 2

 3  Roll Forming Machine

Material Thickness 0.25-0.8mm PPGI and GI Roof sheet machine 3
NO. of Roller Stations 18 stations
Material for Rollers

45# steel polished and coated

with chrome HRC58-62°

Material for Shaft High grade 45# steel polished(CNC lathe)
Diameter of Shaft 70mm(Solid shaft)
Frame Panel 16*290*580mm
Bottom Frame 350x6mm H steel
Motor Power 5.5 KW(shanghai motor)
Driven Type Wall Plate Chain Drive
Chain and Gear 1", 17 teeth sprocket, 50 link chain
Speed About 15m/min

 4  Cut-off Device

Material for Cut-Off Modular Cr12 steel after treatment Roof sheet machine 4
Hardness for Heat Treatment HRC58 – 62°
Cut-Off Type Qualified pillar cutting
Motor for Hydraulic Stand 4KW
Punching Die Material Cr12 steel after treatment

 5  PLC Control Box

Type PLC Frequency Control System with touch screen Roof sheet machine 5
PLC Brand Delta  Encoder Brand: Omron
Length Error ±2mm
Language English and Chinese
Voltage 380v/50HZ, 3Phase (It depends on customer requirement)

 6  Hydraulic Pump Station

Oil type 46# hydraulic oil Floor Decking Machine (9)
Pump brand China brand
Motor power 4kw
Solenoid valves Huade brand
Solid valve Single
Cooling way Fan

 7  Production Support Table

No Power Type
Roof sheet machine 7
Length 2m


Related Plate Type

Steel roll roofing sheet machine

Glazed Tile Type Roll Forming Sheet

详情通用_03

Corrugated Type Roll Forming Sheet 详情通用_05

IBR Type Roll Forming Sheet

详情通用_07
