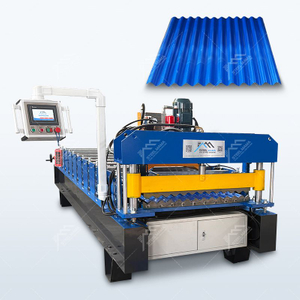

High Quality Barrel Type Metal Corrugated Wave Roofing Iron Sheet Roll Forming Machine
Barrel corrugation Machine Barrel Corrugated Roofing Sheet Making Machine
Barrel style round wave sheet roll forming machine is a kind of metal sheet roll forming machine. Diffierent from normal roll forming machine, it only have two big rollers.Before roll forming process, there will have a running table, after feeding the metal sheet into these two rollers,the thin metal sheet will become round wave type.Barrel style round wave sheet roll forming machineusually produce 0.15-0.6 mm thickness material.The normal machine configuration include roll forming device, pinch roller device, two set product collect table.This kind of material is very popular in Dominica, Ethiopai, South Africa, Vietnam and other areas.
Profile design of corrugated roofing sheet:
PRODUCT DISPALY
High Quality Barrel Type Metal Corrugated Wave Roofing Iron Sheet Roll Forming Machine
MACGUNE FLOW CHART
Main workflow of Barrel Type Metal Corrugated Wave Roofing Iron Sheet Roll Forming Machine
Decoiler → Molding core → Hydraulic System → Automatic Control system → Step Formed
Mechanism → Automatic Shearing Mechanism → Products Receiving Tables
High Quality Barrel Type Metal Corrugated Wave Roofing Iron Sheet Roll Forming Machine
Roll Forming Machine Components:
Decoiler
1 set Feeding Device With Pre-sliding Cutter
1 set Forming Machine
1 set Cutting Device
1 set PLC Control Box
1 set Hydraulic Pump Station 1 set Production Support Table 1 set
PRODUCT FEATURES
1. More efficient and accurate execution of production orders;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to
ensure that customers can get qualified products at the same time, it can avoid the scratch of the color
steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.
PRODUCT APPLICATION
Related Plate Type
Glazed Tile Type Roll Forming Sheet
Corrugated Type Roll Forming Sheet
IBR Type Roll Forming Sheet
Factory Show：
1234 STEELMAMA was founded in 2009. Since its inception, STEELMAMA has always uphold the "create a first-class enterprise, first-class talents, first class contribution" vision, to create a well-known "STEELMAMA" brand. STEELMAMA’s main business is to "project" as the theme of “CHINA STEEL AGENT SERVICE”, leading products for steel profilemachinery include roll forming machine, press brake bending machine and other steel processing machinery, and steel coil include PPGI coil, GI coil, Aluminium coil, Alu-zinc coil and steel strips and plates, also steel building material like metal roofing sheet, purlin sections, H steel, welding mill tube and some hardwares to be global brand.
123
FAQ
1234 1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
